Made to order — lead time confirmed before approval

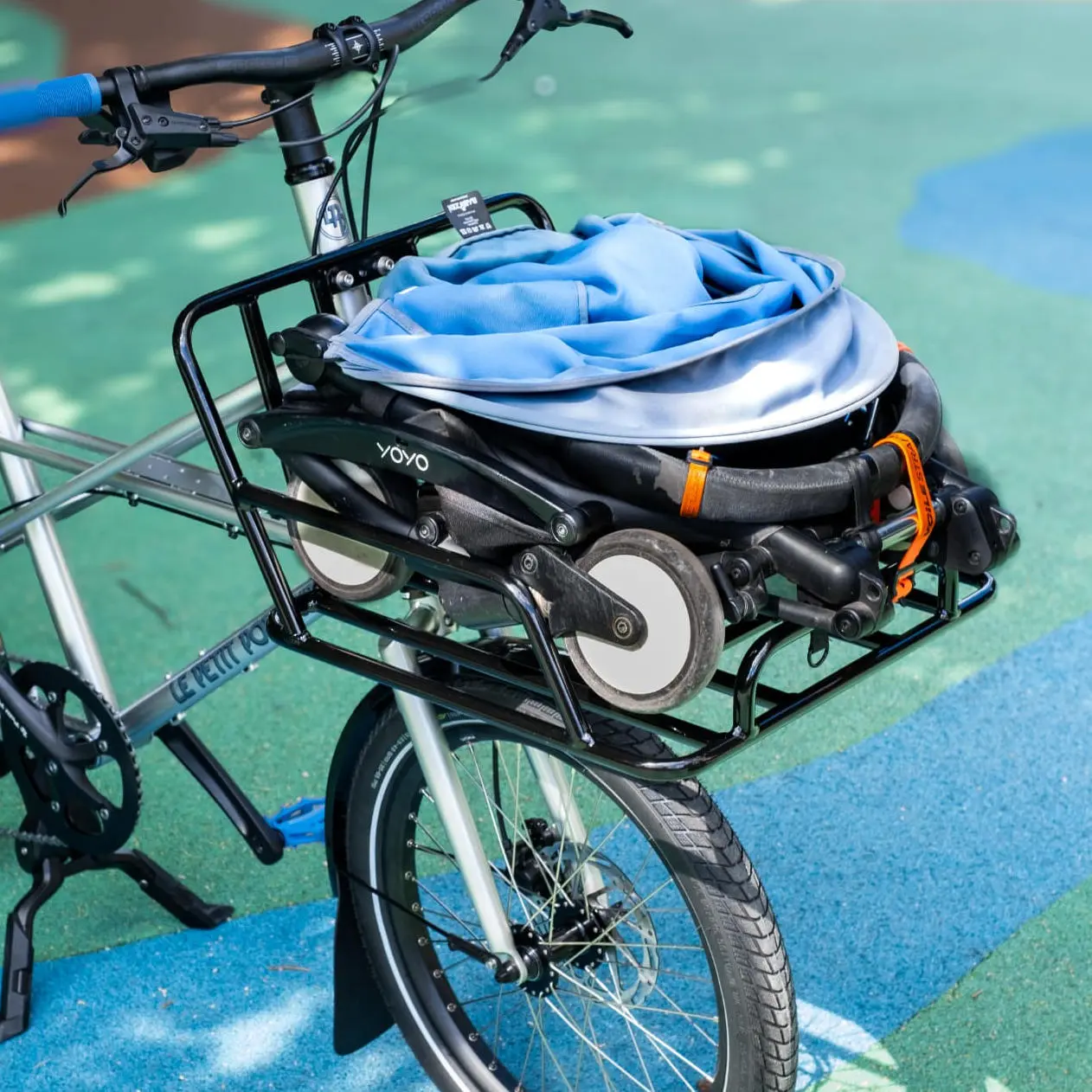

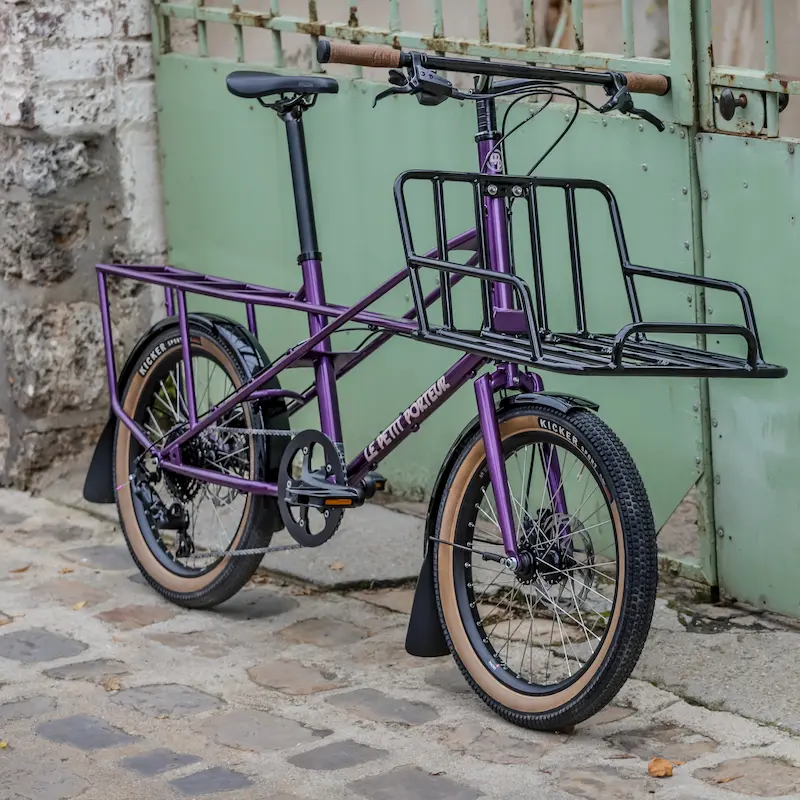

The small city-ready format in its electric version: 250 W / 80 Nm mid-drive motor, 520 Wh battery, accessible position from 1.50 m. Frame-mounted front rack, 20-inch wheels, hydraulic brakes.
ⓘ Understand this motor
Motor torque80 Nm
Nominal power250 W
45 Nm · urban80 Nm · family120 Nm · heavy cargo160 Nm · professional
Family cargo
Torque in Nm mainly indicates the force available when starting and climbing. Range also depends on battery capacity, payload, terrain, tyres and assistance level.
Configuration total
2 490,00 €
Product information
This page brings together the available information to compare this product, check its configuration and prepare your order.
This bike’s battery
Capacity520 Wh
Understanding the motor and battery in 30 seconds
250 W
Power
This is the legal power limit in Europe: all approved electric bikes are rated at 250 W. So it is not what makes the difference between two bikes.
Nm
Torque, in newton-metres
The motor’s real strength: what pushes you when setting off and on hills, with the bike loaded. For a family cargo bike, aim for 60 Nm or more; 80 Nm or more climbs anything, even loaded.
520 Wh
The tank, in watt-hours
The size of the energy tank: the more watt-hours, the further you go. Actual distance depends on terrain and load — see the gauge below.
How far does this battery go? Choose your route
LightDemanding
Fine-tune with the slider: the load carried, the assistance used and the weather matter as much as the gradient.
Everyday city use
≈ 45 km
with 520 Wh
City with a few hills, intermediate assistance, one child or the shopping.
Why from green to red? The closer to red, the harder the motor works: hills, the weight carried, strong assistance, wind and cold all use more energy. The same battery that covers about 65 km in the green covers noticeably less in the red.
Indicative, rounded estimate for comparison: actual range also depends on the bike, the motor, the rider and maintenance. Describe your route to us and we will advise you on the battery and torque you need.
What do I need for my daily use?
Tell us about your use: the motor and battery you need take shape. The higher the gauges climb towards red, the more strength and range your use requires.
Route terrain
Motor · strength
— 40— 60— 85— 120— 160 Nm
≈ 80 Nm
recommended torque
Battery · reserve
— 300— 500— 750— 1000 Wh
≈ 275 Wh
recommended capacity
This bike’s battery (520 Wh) covers this daily need.
The dashed line on the gauges shows this bike.
Indicative estimate, with a 30% reserve so you do not finish the day with a flat battery and to allow for the cold. Describe your route to us: we will confirm the right choice.
Understanding battery, motor and range
The battery = the tank
Its capacity is measured in watt-hours (Wh): voltage (V) multiplied by amp-hours (Ah). More Wh means more kilometres between charges, but neither more speed nor more power.
The motor = the strength
What matters is torque, in newton-metres (Nm): it makes the difference when setting off, on hills and with children or a load. For an electrically assisted bicycle, European law limits power to 250 W and cuts assistance at 25 km/h: maximum assisted speed is therefore the same for all; a higher-torque motor reaches it more easily, even when loaded.
Range = your use
With the same battery, range varies a lot depending on the assistance level chosen (from Eco to Turbo), hills, the weight carried, average speed, wind, tyre pressure and cold weather, which reduces capacity.
Original battery, specified by the manufacturer for this bike.
Type and use
• Cargo bikes
• Electric
• Two wheels
Available configuration
• Standard configuration — options confirmed before ordering
Order and availability
• Made to order — lead time confirmed before approval
• Price including VAT : 2 490,00 €
